山東 MNS 低壓抽屜柜是一款融合現代電氣技術與精密制造工藝的低壓配電裝置，專為工業與民用供配電系統設計。該設備以冷軋鋼板為基材，經高精度折彎成型，通過標準化連接件組裝而成，模塊化設計使其可依據不同配電需求，靈活配置柜體結構、功能單元與防護組件，構建完整可靠的電力分配與控制體系。

　　Shandong MNS low-voltage drawer cabinet is a low-voltage distribution device that integrates modern electrical technology and precision manufacturing processes, designed specifically for industrial and civilian power supply and distribution systems. This equipment is made of high-quality cold-rolled steel plates as the base material, which are formed by high-precision bending and assembled through standardized connectors. The modular design allows for flexible configuration of cabinet structure, functional units, and protective components according to different power distribution needs, building a complete and reliable power distribution and control system.

　　一、多元場景下的深度應用

　　1、 Deep application in diverse scenarios

　　山東 MNS 低壓抽屜柜憑借性能，在多個領域發揮關鍵作用。在電力行業，作為變電站低壓側的核心配電設備，它能精準分配電能，保障電力穩定輸出；建筑領域中，無論是商業綜合體的大型配電間，還是高層住宅的電氣豎井，該設備都能為照明、空調、電梯等系統提供可靠的電力供應；鋼鐵、水泥等重工業場景下，面對高負荷、強沖擊的用電環境，其穩定的電氣性能可確保生產線設備持續運行；在石化行業，防爆型 MNS 低壓抽屜柜滿足特殊區域的用電需求，助力油氣開采、化工生產等環節的電力控制；此外，數據中心、醫院等對供電可靠性要求極高的場所，也廣泛采用該設備構建冗余配電系統，為關鍵設備提供不間斷電力保障。

　　Shandong MNS low-voltage drawer cabinets play a key role in multiple fields with excellent performance. In the power industry, as the core distribution equipment on the low-voltage side of substations, it can accurately distribute electrical energy and ensure stable power output; In the field of architecture, whether it is a large distribution room in a commercial complex or an electrical shaft in a high-rise residential building, this equipment can provide safe and reliable power supply for lighting, air conditioning, elevators, and other systems; In heavy industrial scenarios such as steel and cement, facing high load and strong impact electrical environments, their stable electrical performance can ensure the continuous operation of production line equipment; In the petrochemical industry, explosion-proof MNS low-voltage drawer cabinets meet the safety electricity needs of special areas and assist in power control for oil and gas extraction, chemical production, and other processes; In addition, data centers, hospitals, and other places with extremely high requirements for power supply reliability also widely use this equipment to build redundant distribution systems, providing uninterrupted power guarantee for key equipment.

　　二、精密科學的結構與工作原理

　　2、 The structure and working principle of precision science

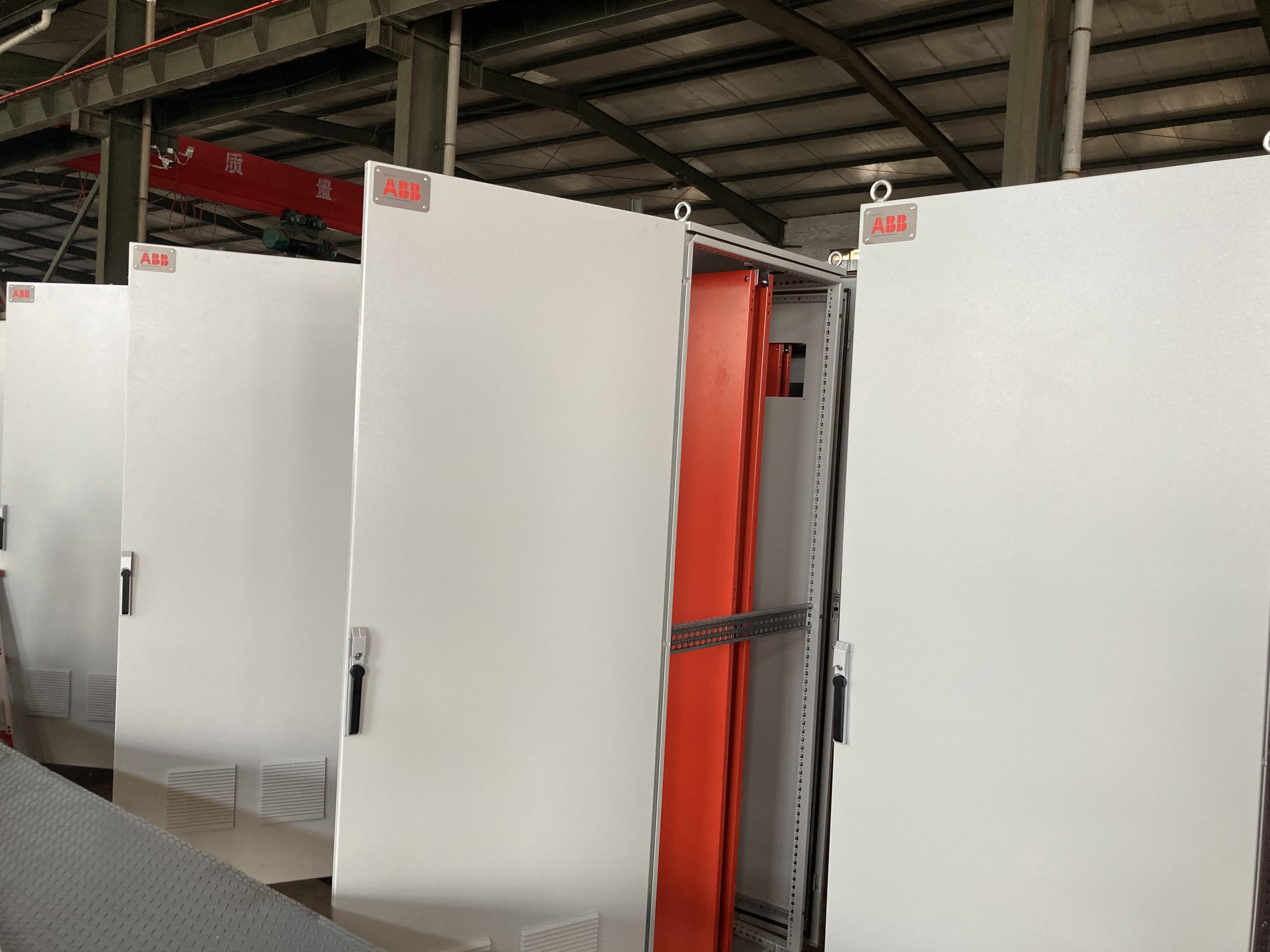

　　山東 MNS 低壓抽屜柜采用模塊化設計理念，以 25mm 為基本模數（單位 E），柜體框架由高強度冷軋鋼板經數控設備加工而成，各部件通過自攻鎖緊螺釘或六角螺釘穩固連接。柜體內部劃分功能單元室、母線室、電纜室等獨立隔室，有效避免不同功能區域間的電磁干擾與故障蔓延。

　　The Shandong MNS low-voltage drawer cabinet adopts a modular design concept, with a basic module of 25mm (unit E). The cabinet frame is made of high-strength cold-rolled steel plate processed by CNC equipment, and each component is firmly connected by self tapping locking screws or hexagonal screws. The cabinet is divided into independent compartments such as functional unit rooms, busbar rooms, and cable rooms, effectively avoiding electromagnetic interference and fault propagation between different functional areas.

　　功能單元是抽屜柜的核心組件，涵蓋斷路器、接觸器、繼電器等電氣元件，按 8E/4、8E/2、6E、8E 等多種規格組合，可實現對電路的通斷控制、過載保護、短路保護等功能。母線系統采用高強度絕緣材料包裹銅質母線排，具備強大的載流能力與動熱穩定性，能承受短路電流的沖擊；電纜室預留充?？臻g，方便電纜的引入、固定與連接，確保電力傳輸?shù)姆€(wěn)定。各隔室間通過金屬隔板完全隔離，滿足國際電工標準 IEC 439-1 中 “形式 4” 的防護要求，有效提升設備運行性。

　　The functional unit is the core component of the drawer cabinet, covering electrical components such as circuit breakers, contactors, relays, etc. It can be combined in various specifications such as 8E/4, 8E/2, 6E, and 8E to achieve functions such as on/off control, overload protection, and short circuit protection for circuits. The busbar system adopts high-strength insulation material to wrap the copper busbar, which has strong current carrying capacity and dynamic thermal stability, and can withstand the impact of short-circuit current; Adequate space is reserved in the cable room to facilitate the introduction, fixation, and connection of cables, ensuring efficient and stable power transmission. Each compartment is completely isolated by metal partitions, meeting the protection requirements of "Form 4" in the international electrical standard IEC 439-1, effectively improving the safety of equipment operation.

　　三、突出的技術優勢與性能特點

　　3、 Outstanding technological advantages and performance characteristics

　　的電氣性能：山東 MNS 低壓抽屜柜的額定載流量、分?jǐn)嗄芰εc動熱穩定性等關鍵指標均處于行業水平。其框架結構經優化設計，能承載高達 6300A 的額定電流，短路分?jǐn)嗄芰蛇_(dá) 150kA，有效保障在復雜用電環境下的可靠運行，降低設備故障風險。

　　Excellent electrical performance: The rated current carrying capacity, breaking capacity, and dynamic thermal stability of Shandong MNS low-voltage drawer cabinets are all at the leading level in the industry. Its framework structure has been optimized and designed to carry a rated current of up to 6300A, with a short-circuit breaking capacity of up to 150kA, effectively ensuring reliable operation in complex electrical environments and reducing equipment failure risks.

　　可靠的防護體系：設備具備多種防護等級，如 IP31 可防護直徑大于 2.5mm 的物體侵入，阻擋灰塵與小型外物；IP40 能防止大于 1.0mm 的固體異物進入；IP54 則進一步增強防塵防水能力，可抵御飛濺的水侵入，適用于不同環境需求，為內部電氣元件提供良好的運行環境 。

　　Reliable protection system: The equipment has multiple protection levels, such as IP31, which can protect objects with a diameter greater than 2.5mm from entering, block dust and small foreign objects; IP40 can prevent solid foreign objects larger than 1.0mm from entering; IP54 further enhances dust and water resistance, can resist splashing water intrusion, and is suitable for different environmental requirements, providing a good operating environment for internal electrical components.

　　智能的聯鎖機制：防誤操作聯鎖系統由斷路器操作手柄機構與抽屜位置機械聯鎖共同構成，采用雙重保險設計。當抽屜處于工作位置時，斷路器操作手柄鎖定，防止誤分合；抽屜未完全推入或抽出時，斷路器無法合閘，有效避免因誤操作引發的事故。此外，還可實現柜間聯鎖，依據系統運行方式靈活配置，增強整個配電系統的性與可靠性。

　　Intelligent interlocking mechanism: The anti misoperation interlocking system consists of a circuit breaker operating handle mechanism and a drawer position mechanical interlock, adopting a dual safety design. When the drawer is in the working position, the circuit breaker operating handle is locked to prevent accidental opening and closing; When the drawer is not fully pushed in or pulled out, the circuit breaker cannot be closed, effectively avoiding safety accidents caused by misoperation. In addition, interlocking between cabinets can be achieved, which can be flexibly configured according to the system operation mode, enhancing the safety and reliability of the entire distribution system.

　　靈活的配置方案：以 8E 為基礎單元的模塊化設計，使功能單元組合豐富多樣。一臺 MCC 柜多可容納 36 個功能單元，支持 PC（動力中心）與 MCC（電動機控制中心）混裝，可根據實際用電需求靈活調整方案，減少柜體數量，優化配電室空間布局，同時降低設備采購與安裝成本 。

　　Flexible configuration scheme: Modular design based on 8E as the basic unit, making the combination of functional units rich and diverse. One MCC cabinet can accommodate up to 36 functional units, supporting the mixing of PC (power center) and MCC (motor control center). The plan can be flexibly adjusted according to actual power demand, reducing the number of cabinets, optimizing the spatial layout of the distribution room, and reducing equipment procurement and installation costs.

　　山東 MNS 低壓抽屜柜憑借的技術、可靠的性能與靈活的配置，成為現代供配電系統中不可或缺的關鍵設備，為各行業的電力與運行提供了堅實保障，推動著低壓配電領域的技術進步與應用革新。

　　Shandong MNS low-voltage drawer cabinets, with advanced technology, reliable performance, and flexible configuration, have become an indispensable key equipment in modern power supply and distribution systems, providing solid guarantees for power safety and efficient operation in various industries, and promoting technological progress and application innovation in the field of low-voltage distribution.
